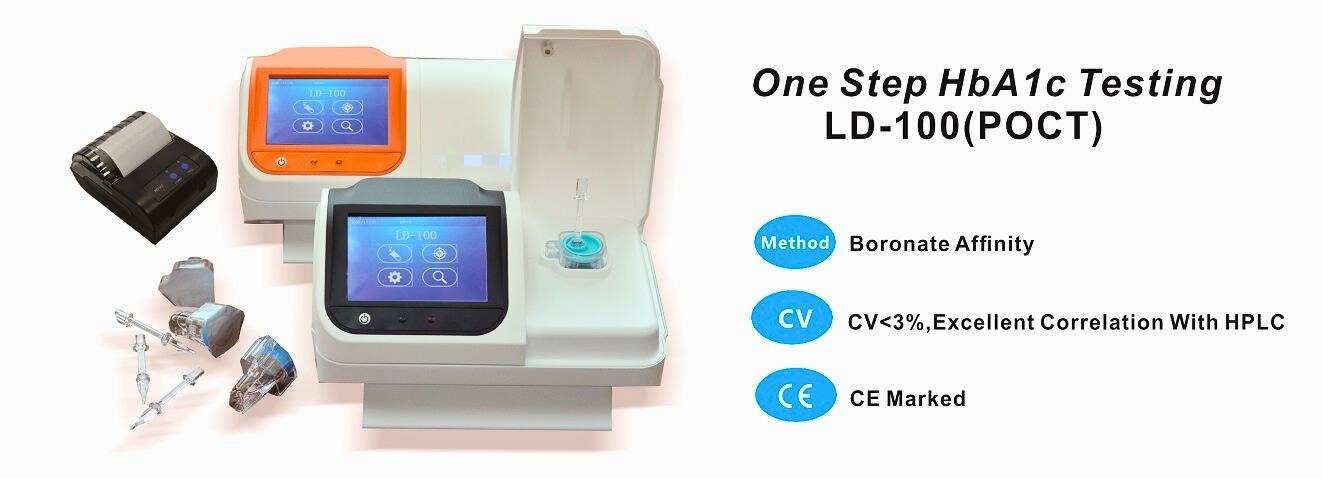

HbA1c One-step Portable Analyzer

CE logo

INTENDED USE

The LD-100 is a portable, compact, point-of-care (POCT) HbA1c analyzer designed for one-step operation. It measures glycosylated hemoglobin using the well-established Boronate Affinity method. With its flexible workflow and user-friendly interface, the LD-100 delivers laboratory-quality results, making it an ideal tool for diabetes management by both patients and healthcare professionals in laboratories, pharmacies, clinics, and hospitals.



Description

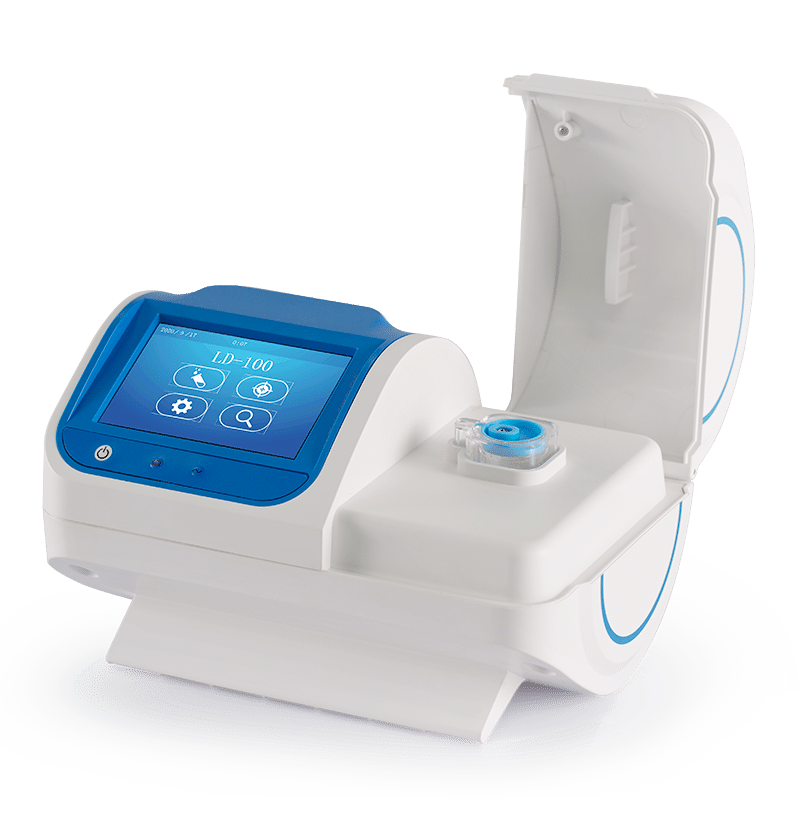

MODEL LD-100

One-Step HbA1c Testing
* Boronate Affinity Method
* Results within 3 Minutes
* CV<3%, Excellent Correlation With HPLC
* Portable and Compact
* RFID For Batch Management


SPECIFICATIONS

Model
LD-100
Method
Boronate Affinity
Reagent Specification
25, 50, 100 Tests/Kit
Measurement Time
< 3 Minutes
Sample Type
Whole Blood, Fingertip Blood
Sample Volume
4µl
Measurement Range
HbA1c: 4.0% ~ 15% (NGSP), 20.22 ~ 140.45mmol/mol (IFCC)
Result Storage
10,000 Sample Results
Operation Condition
Temperature: 15 ~ 32℃ , Humidity: 10% – 80%
Shelf-Life of Test Kit
12 Months
Voltage
24V, 2.5A
Net Weight
≤ 0.8 Kg
Dimensions
192(L) x 128(W) x 108(H)mm
Temperature
Analyzer: -20℃~55℃         Test Kit: 2℃~8℃
Display
3.5″ Touch Screen
Other Features

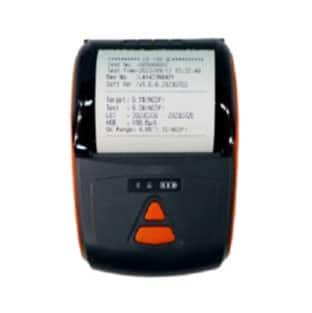

External Printer (Bluetooth), USB Port, LIS Support



RELIABILITY

IFCC Calibrator Normal Abnormal Normal Abnormal
Mean HbA1c% 5.4 9.6 5.3 9.2
CV (%) 2.50% 1.90% 2.40% 1.80%

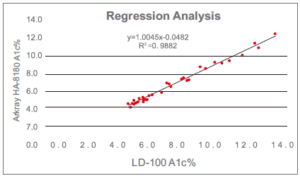

ACCURACY

Accuracy comparison      Accuracy comparison 2
