Intended Use
Genomic DNA extraction columns are supplied with spin columns and collection tubes. The columns provide fast and reliable extraction of high-quality DNA from a variety of samples including tissues, cells, plants, and blood with a binding capacity of 20 μg.
Extracted DNA is ready for use in many downstream applications, including PCR, restriction digestion, sequencing, and library construction.
Features
Pack Size:
Order information:
| Cat. # | Description | Volume | Yield | Qty. |
|---|---|---|---|---|
| NP20 | Genomic DNA Extraction Columns, Capless spin columns, Green fixing rings | 2 mL，800 μL | ~20 μg | 500/Box |
| NP20-A | Genomic DNA Extraction Columns, Capped spin columns, Green fixing rings | 2 mL，800 μL | ~20 μg | 500/Box |
| NP20-AS | Genomic DNA Extraction Columns, Capped spin columns, White fixing rings | 2 mL，750 μL | ~20 μg | 500/Box |
| MNP002-1 | Blood DNA Kit | 50 Preps | ||
| MNP004-1 | Soil DNA Kit | 50 Preps | ||
| MNP005-1 | Rapid Soil DNA Kit | 50 Preps | ||
| MNP006-1 | Plant DNA Kit | 50 Preps | ||
| MNP007-1 | Rapid Plant DNA Kit | 50 Preps | ||
| MNP011-1 | Stool DNA Kit | 50 Preps | ||
| MNP012-1 | Bacteria DNA Kit | 50 Preps | ||

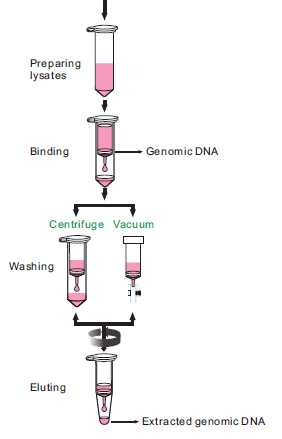

Experimental overview
Typical results
Bacteria DNA was extracted from 1 mL overnight culture using BeingBio NP20, and the elution volume was 80 μL.
Lane 1: E. coli
Lane 2: Staphylococcus aureus
Lane 3: Bacillus subtilis
Figure 1: Bacteria DNA extracted from different samples
Blood DNA was extracted from 100 μL human blood, 100 μL mouse blood, 20 μL chicken blood, and 20 μL frog blood, and the elution volume was 80 μL.
Figure 2: Blood DNA extracted from different samples
| Product No | MNP002-1, MNP004-1, MNP005-1, MNP006-1, MNP007-1, MNP011-1, MNP012-1, NP20, NP20-A, NP20-AS |
|---|---|
| Packing Size | 50 Preps, 500 Pcs/pack |
